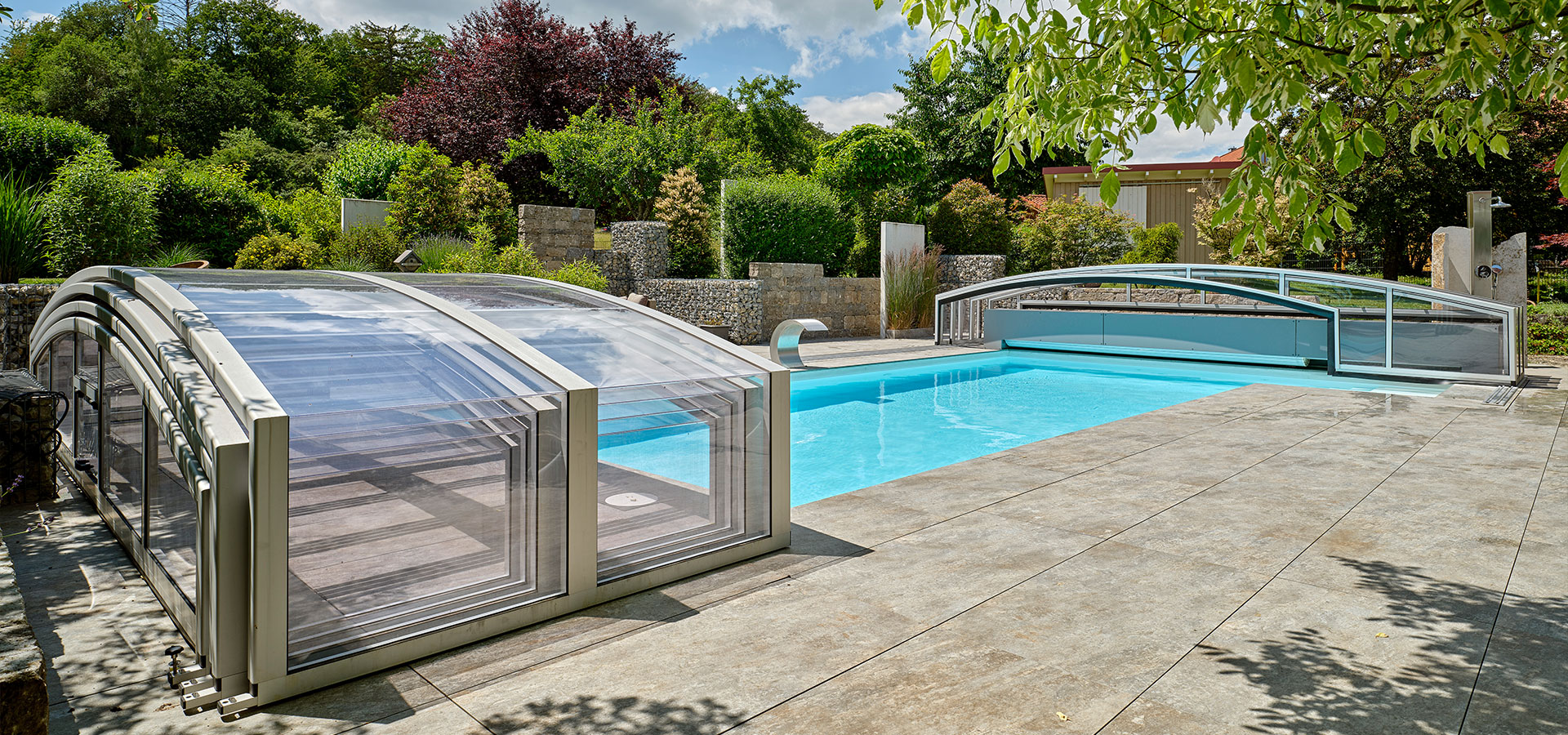

CARAT flat and puristic pool cover

Its vertical side walls give the CARAT a striking character and create a sense of space inside the pool enclosure.

The compact, reinforced profiles ensure greater elegance and stability. The workmanship and design are of the highest quality. The transparent corners, thanks to the thermally folded, unbreakable polycarbonate, offer greater transparency and aesthetic appeal. A version with a ground rail on one side only is available as an option. As with all our models, the roof elements of the swimming pool enclosure can be telescoped into one another. With the appropriate track extension, the pool cover can also be pushed completely behind the pool.

Enquire now Equipment options Order catalog

At a glance. Advantages of the flat CARAT pool cover.

Safe & stable
The pool roof provides protection from accidents for children and pets. The specially developed wind protection and high-quality solid panels protect against wind and snow. The polycarbonate glazing is completely shatterproof and impact-resistant.
Comfort
All elements can be moved independently of each other, by just one person. Doors and ventilation windows can be customized. The pool enclosure is also available with a lock and motorized option.
Protection & environment
The water is protected from falling leaves, dirt, and pests. Cleaning work, such as vacuuming, and the need for chemical cleaning agents are reduced. Running costs are also lower.
Water temperature
The bathing season is extended through effective use of solar energy. The water doesn’t cool down overnight thanks to good insulation properties. Bathing fun even in changeable weather.

Technical data VÖROKA CARAT

Roofing dimensions

Standard widths: up to 7.00 m
Standard heights: up to 1.50 m
Canopy length: variable
Custom sizes or different widths and heights are available upon request.

Technical data

Glass surfaces

Complete opening of the roof and pool area thanks to independent modules
Sealing of the individual modules against water and dirt penetration using EPDM tape
Roof surface made of shatter-proof polycarbonate with UV protection
Roof surfaces and end walls made of twin-wall sheets or crystal-clear solid sheets
Curved roof in a transparent connection with straight sides made of thermoformed polycarbonate sheets
Roof profiles are anodized and thus protected against weather influences and mechanical stress

Opening

Complete opening of the roof and pool area thanks to independent modules
Easy movement of the elements thanks to rollers made of polyamide and stainless steel with ball bearings
Roof with motor optionally available / Roof with optional electrical sliding

Attachment

Grounded ground rails for barefoot access
Comfort rails are suitable for installation in the ground
Improved wind protection devices interlock in the event of excessive wind uplift

Load-bearing capacity

Load-bearing capacity and stability statically calculated and Tested
Load-bearing capacity and stability statically tested and certified according to LNE NF P90-309
Snow load supported up to 100 kg/m², even more in special designs

Other facts

Extensive additional equipment available
Factory production control is certified according to DIN EN 1090-1

Options

Options / Accessories: Ventilation window | Side entry | Side sliding door | Track extension | Comfort track
Colors (profiles): RAL9010 (white) | RAL8014 (brown) | RAL6005 (green) | RAL1015 (beige) | Other colors upon request

Customised pool cover directly ex works – our delivery area

We supply and install our high-quality, customised canopies in numerous regions of Europe – reliable, weatherproof and with a modern design. Whether in alpine locations, in western Central Europe or in the far north: VÖROKA canopies are perfectly tailored to regional requirements and individual style preferences.

Our delivery and installation service covers Germany, Austria, Switzerland, northern Italy, the Benelux countries, France, northern Spain, Denmark and Sweden.

Are you based outside this area?
No problem, just contact us. We will also make our way to you.
